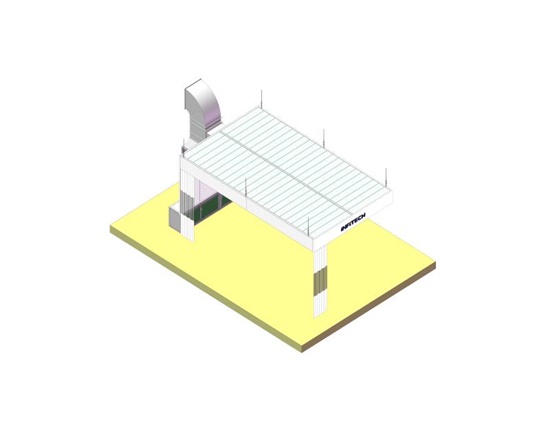

DESIGN STANDARD

BS EN 13355：2004+A1:2009

BS EN 60204：2006+A1:2009

BOOTH DIMENSIONS

Internal dimensions

6900×4000×2800mm  (L×W×H)

External dimensions

8370×4110×3260mm（L×W×H)

BASEMENT

No base

AIRFLOW

Rear semi down draft extraction type

FILTER AREA

3.2㎡

CABIN

Cabin structure

Wall panel vertical insert

Top Plenum

400mm

Rear wall panel

50mm dual-skin insulated panels filled with heat resistant rock wool

Ceiling panel

Galvanized roof bending forming

PVC CURTAIN

(colors optional: grey, blue, red, yellow)

Form of curtain

PVC

Arrangement and quantity

Front 1 set , side 2 .color : middle transparent , both ends white.

CEILING LIGHTING

（LED lighting system）

Quantity and power

8 sets of light fixtures, each 4 X 18W, 576W total

arrangement mode

on both side

Lighting description

 IP55 Protection grade IP55

IIIUMINATION

>700Lux

FILTER

Pre-Filter

G2 grade Fiberglass paint arrestor filter

Ceiling filter

F5 class filter cotton, Model SP-600G

Floor filtration

G2 grade Fiberglass paint arrestor filter

EXHAUST UNIT

Exhaust fan type

Direct-type turbine fan

Power and motor description

1×5.5KW,970RPM,380V,50HZ；CE

Parameters of exhaust

18000m³/h ；650pa

Ductwork

Straight ducting

4 piece

90° elbow

1 piece

Reducer

1 piece

Triplet

1 piece

Electric damper

1 piece, Adjustable electric actuator drive to adjust the return air size of the air valve

CONTROL SYSTEM

Operative standard

BS EN 60204：2006+A1:2009

Function

Fan start, emergency stop switch, fault indication

SPECIAL DESCRIPTION PROJECT

RATED POWER：6.5KW
