Model:IT-6100C |
DESIGN STANDARD | BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009 |
BOOTH DIMENSIONS |
|
Internal dimensions | 6900×4000×2800mm (L×W×H) |
External dimensions | 8200×4110×2800mm(L×W×H) |
BASEMENT |
|

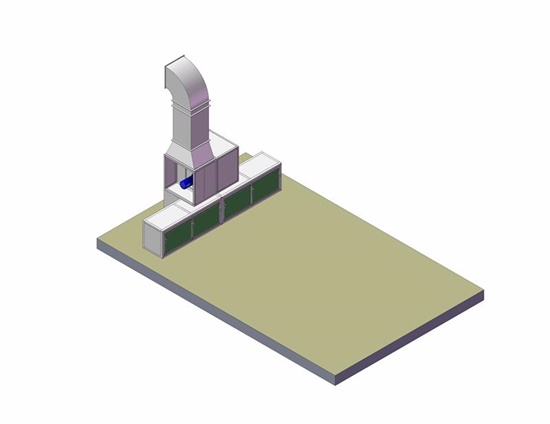

Base design | No base,Rear semi down draft extraction type |
Carrying capacity of the grids | No |
Filter area | 3.2㎡ |
Plenum chamber description | Frame construction ,Size:2000*800*660mm |
Filter system |
|
Pre-Filter | Fiberglass paint arrestor filter |
Ceiling filter | / |
Floor filtration | Fiberglass paint arrestor filter,it has the characteristics of large air permeability, low resistance and flammability. |
EXHAUST UNIT |
|
Exhaust fan type | Direct-type turbine fan |
Power and motor description | 1×4KW,960RPM,380V,50HZ;CE |
Parameters of exhaust | 15000m³/h ;650pa |
Ductwork |
|
Straight ducting | 4 piece |
90° elbow | 1 piece |
Reducer | 1 piece |
CONTROL SYSTEM |
|
Operative standard | BS EN 60204:2006+A1:2009 |
Function | Fan start, emergency stop switch, fault indication |
SPECIAL DESCRIPTION PROJECT | RATED POWER:4KW |
