DESIGN STANDARD

BS EN 13355：2004+A1:2009

BS EN 60204：2006+A1:2009

BOOTH DIMENSIONS

Internal dimensions

6900×4000×2800mm (L×W×H)

External dimensions

8260×4110×2800mm（L×W×H)

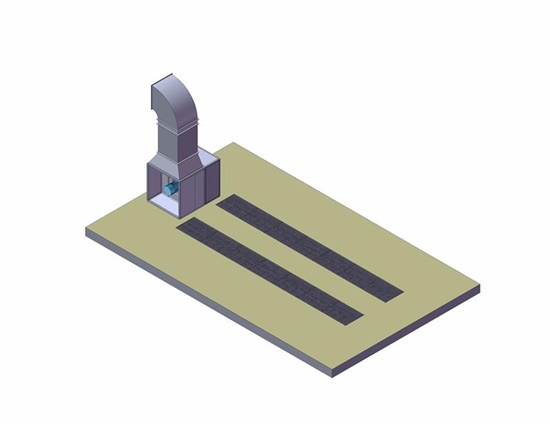

BASEMENT

Base design

Dig a pit type，Two rows of grids

Carrying capacity of the grids

650kg/Wheel

Filter area

10.4㎡

Drive-in-ramps

/

Grids description

Size：997*756mm ,  40*3mm，The most characteristic of this kind of steel lattice plate is to replace the traditional twisted steel bar with the pressed steel lattice plate, which is beautiful, durable, and has good mechanical properties.

CABIN

/

Wall paint

/

PVC curtain

/

Ceiling lights

/

Filter system

Pre-Filter

Fiberglass paint arrestor filter

Ceiling filter

/

Floor filtration

Fiberglass paint arrestor filter，it has the characteristics of large air permeability, low resistance and flammability.

EXHAUST UNIT

Exhaust fan type

Direct-type turbine fan

Power and motor description

1×5.5KW,970RPM,380V,50HZ，CE

Parameters of exhaust

18000m³/h ；650pa

Ductwork

Straight ducting

4 piece

90° elbow

1 piece

Reducer

1 piece

CONTROL SYSTEM

Operative standard

BS EN 60204：2006+A1:2009

Function

Fan start, emergency stop switch, fault indication

SPECIAL DESCRIPTION PROJECT

RATED POWER：5.5KW
