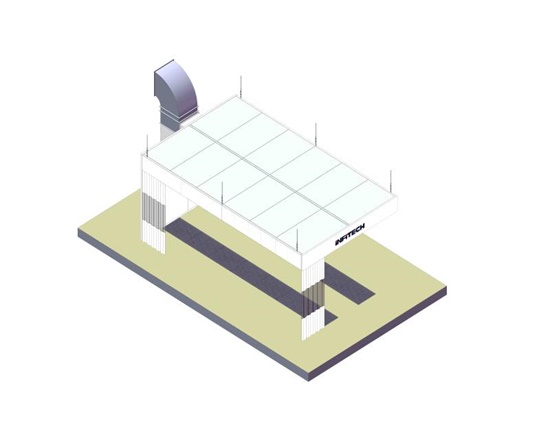

Model:IT-6200B |
DESIGN STANDARD | BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009 |
BOOTH DIMENSIONS |
|
Internal dimensions | 6900×4000×2800mm ( L×W×H) |
External dimensions | 8370×4110×3260mm(L×W×H) |
BASEMENT |
|
Design form | Dig a pit type,Two rows of grids |
Carrying capacity of the grids | 650kg/wheel |
Filter area | 10.4㎡ |
Drive-in-ramps | No ramps |
Grid description | Size:997*756mm , 40*3mm,galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of pressed steel grates. |
CABIN |
|
Cabin structure | Wall panel vertical insert |
Top Plenum | 400mm |
WALL PLANT | 50mm wall plant ,filled with EPS |
Ceiling panel | Galvanized roof bending forming |
Edge material | 1.2mm Galvanized sheet bending forming |
PVC CURTAIN | (colors optional: grey, blue, red, yellow) |
Form of curtain | PVC |
Arrangement and quantity | Front 1 set , side 2 .color : middle transparent , both ends white. |
CEILING LIGHTING | (LED lighting system) |
Quantity and power | 8 sets of light fixtures, each 4 X 36W, 576W total |
arrangement mode | on both side |
Lighting description | IP55 Protection grade IP55 |
ILLUMINATION | >700Lux |
FILTER SYSTEM |
|
Ceiling filter | EU5 class filter cotton, Model SP-600G |
Floor filtration | Fiberglass paint arrestor filter |
Exhaust filter | Fiberglass paint arrestor filter,it has the characteristics of large air permeability, low resistance and flammability. |
INTAKE SYSTEM |
|
Intake fan type | Direct-type turbine fan |
Power and motor description | 1×5.5KW,970RPM,380V,50HZ;CE |
Electric damper | 1 piece, Adjustable electric actuator drive to adjust the return air size of the air valve |
Parameters of intake | 28000m³/h ;650pa |
DUCTWORK |
|
Straight ducting | 3 piece |
90° elbow | 1 piece |
Reducer | 1 piece |
Triplet | 1 piece |
Electric damper | 1 piece, Adjustable electric actuator drive to adjust the return air size of the air valve |
CONTROL SYSTEM |
|
Operative standard | Standard Y / Δ Step-down starting Control system |
Function | Fan start, emergency stop switch, fault indication |
SPERCICAL DESPICAL PROJECT | RATED POWER:8.5KW |
