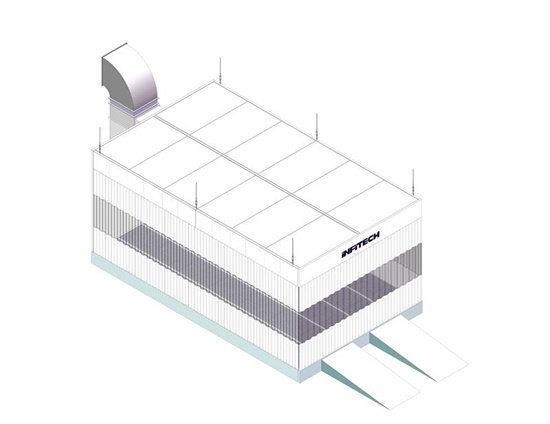

IT-6200A

Product Details

PDF for reference:IT-6200A-Model.pdf

ModelIT-6200A

DESIGN STANDARD

BS EN 133552004+A1:2009

BS EN 602042006+A1:2009

BOOTH DIMENSIONS


Internal dimensions

6900×4000×2800mm L×W×H)

External dimensions

10670×4110×3610mmL×W×H)

BASEMENT


Base design

Galvanized sheet bending forming

Full grids350mm high

Carrying capacity of the grids

650kg/Wheel

Filter area

27.6

Drive-in-ramps

2 rampssize2000*520mm

Grids description

size997*756mm , 40*3mmThe grids is made of pressed steel lattices.

CABIN


Cabin structure

Wall panel vertical insert

Top Plenum

400mm

Rear wall panel

50mm dual-skin insulated panels filled with heat resistant rock wool

Ceiling panel

Galvanized roof bending forming

PVC curtain

(colors optional: grey, blue, red, yellow)

Form of curtain

PVC

Arrangement and quantity

Front 1 set , side 2 .color : middle transparent , both ends white.

Ceiling lights

LED lighting system

Quantity and power

sets of light fixtures, each 4 X 18W, 576W total

arrangement mode

on both side

Lighting description

 IP55 Protection grade IP55

Illumination

>700Lux

Filter system


Pre-Filter

G2 grade Fiberglass paint arrestor filter

Ceiling filter

F5 class filter cotton, Model SP-600G

Floor filtration

G2 grade Fiberglass paint arrestor filter

EXHAUST UNIT


Exhaust fan type

Direct-type turbine fan

Power and motor description

5.5KW,970RPM,380V,50HZCE

Parameters of exhaust

18000m³/h 650pa

Ductwork


Straight ducting

piece

90° elbow

piece

Reducer

piece

Triplet

1 piece

CONTROL SYSTEM


Operative standard

Standard Y / Δ Step-down starting Control system

Function

Fan start, electric throttle adjustment, emergency stop switch, fault indication

SPECIAL DESCRIPTION PROJECT

RATED POWER8.5KW
