Completion date: March 2015
Project name:Paint baking booth
Provision of products:
1set Paint baking booth,inside dimension:6900X4000X2800 Ventilation capacity:28000m³/h
Technical characteristics:
n European standard convex roof design;
n European standard production of high wind leaves, large flow rate, large pressure professional baking room fan & flow equalizer to ensure that all points in the room air velocity within the range of 0.25-0.4m/s, so that there will be no eddy current phenomenon in the room. The exhaust gas and the superfluous paint fog discharge speed is reasonable, accurate, does not remain;
n LED Energy-saving Lighting system;

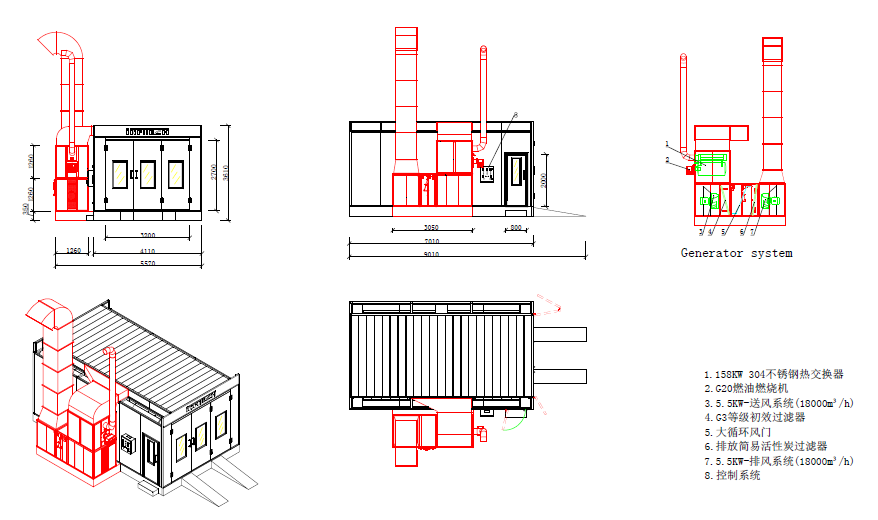

Engineering layout diagram

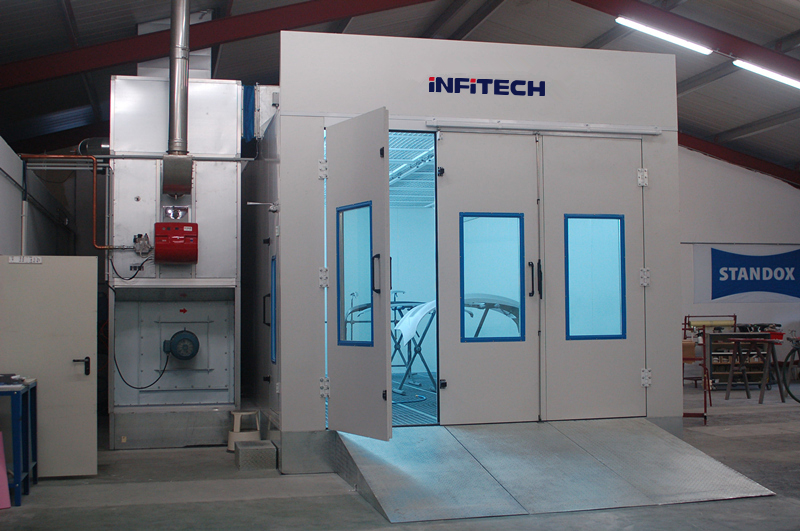

As-built drawings
