Completion date : March 2016

project name：Furniture painting and baking room

Provision of products:

1set Painting room，inside dimension：7000X4000X2800     Ventilation capacity：28000m³/h

1set Baking room，inside dimension：7000X4000X2800      Circulating wind capacity:18000m³/h

Technical characteristics:

n European standard convex roof design;

n High efficiency Wet paint Fog treatment system for Water Curtain；

n Workpiece transfer track design;

n Infrared drying system；

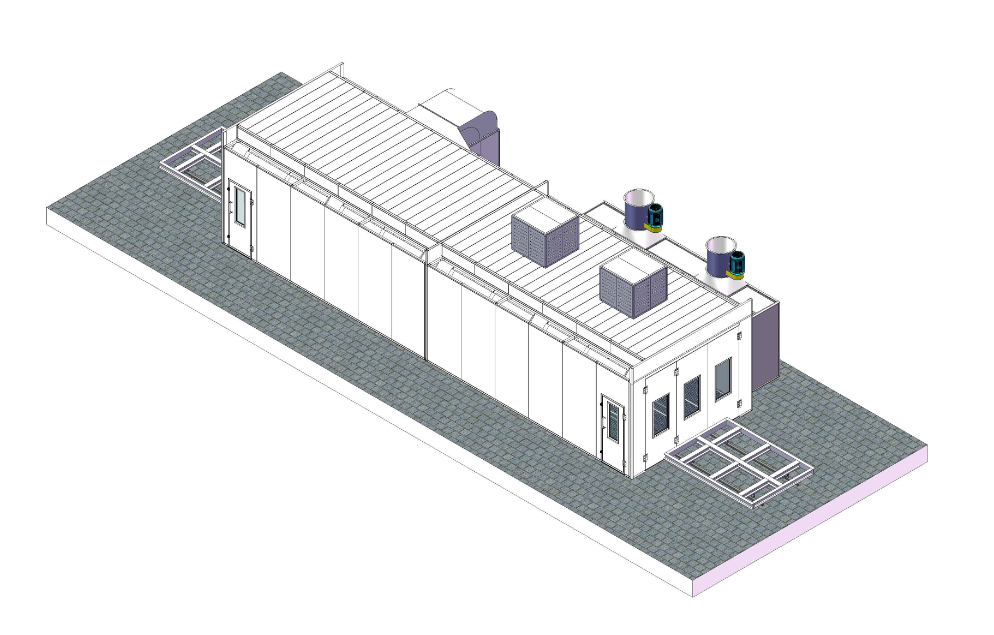

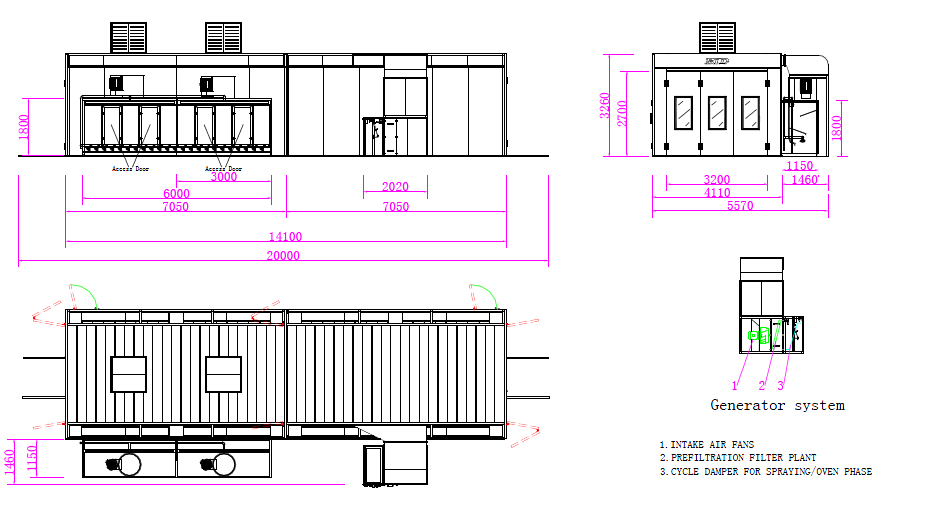

Engineering layout diagram

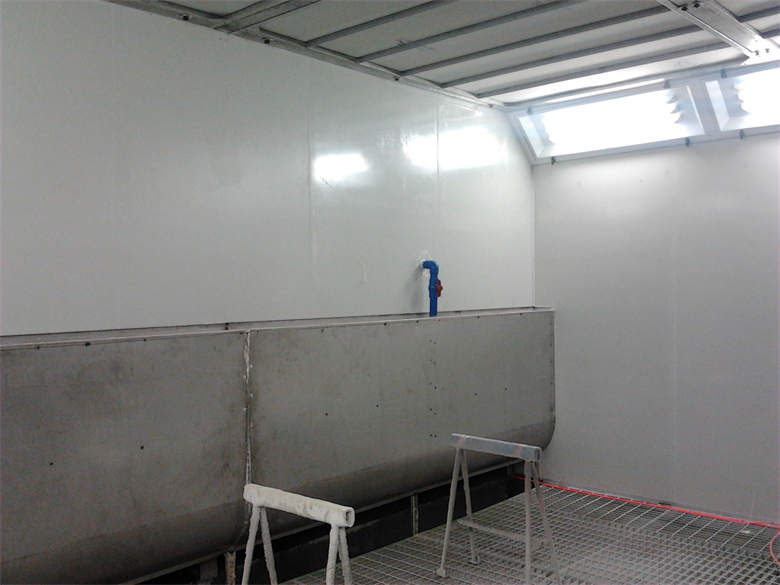

As-built drawings
