Provision of products:

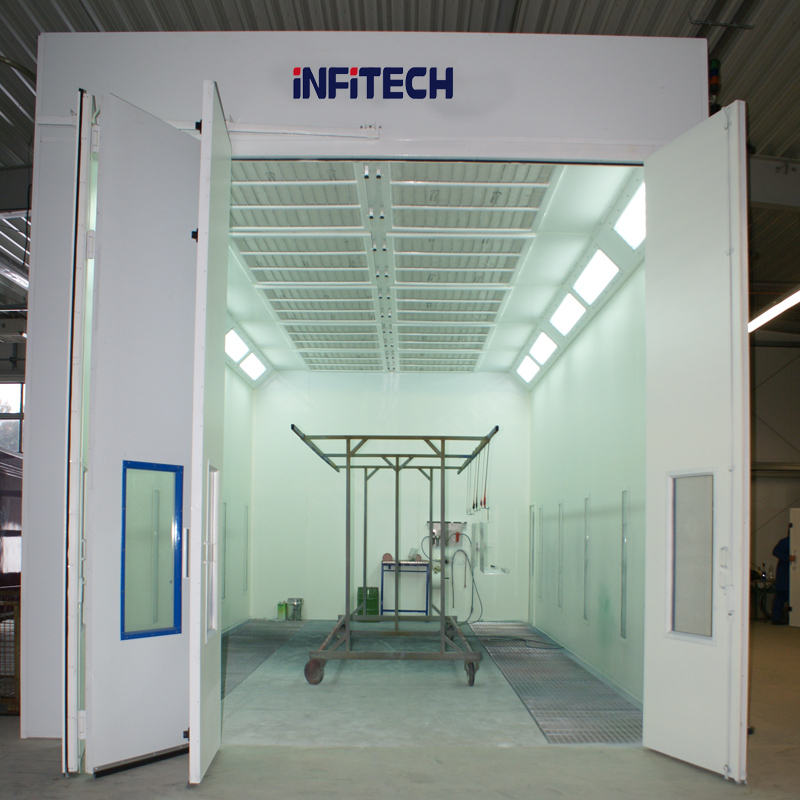

1set Painting room,inside dimension:9200X5000X5000 Ventilation capacity:35000m³/h
Technical characteristics:
n Submersible double tunnel exhaust design;
n Body structure of European standard convex roof;
n Anti-droop of door crane rail;
n European standard production of high wind leaves, large flow rate, large pressure professional baking room fan & flow equalizer to ensure that all points in the room air velocity within the range of 0.25-0.4m/s, so that there will be no eddy current phenomenon in the room. Exhaust gas and superfluous paint fogs are discharged at a reasonable, accurate and non-residual rate;
n Hot water heating system, copper tube aluminum fin heat exchanger;
As-built drawings
